Tile leveling systemsManufacturer · OEM · Wholesale

Precision starts
at the grout line.

Factory-direct wholesale, OEM and private-label supply: 0.5–3 mm joint widths, tiles up to 29 mm, and neutral, bulk or retail-ready packing agreed per order.

Request a Quote Explore Systems
0.5
1
1.5
2
3
mm
0.5–3 mmGrout gaps
OEM / ODMRetail-ready packing
WorldwideExport support
Professional tile leveling clip with dimensions

01Recommended ClipEXPORT BESTSELLER

The grout line

Set the joint. Read the gap.

Five joint widths, 0.5 to 3 mm. Pick one to see the gap at ×8 scale.

Made for professional resultsCONSISTENT JOINTSLESS LIPPAGEFASTER INSTALLATIONEXPORT-READY PACKING

THE SYSTEM

One system.
Every tile job.

Choose clips by joint width and tile thickness, then pair them with reusable wedges and purpose-built pliers.

Download product catalog English PDF · 36 pages · 15.7 MB

See all tile leveling clips

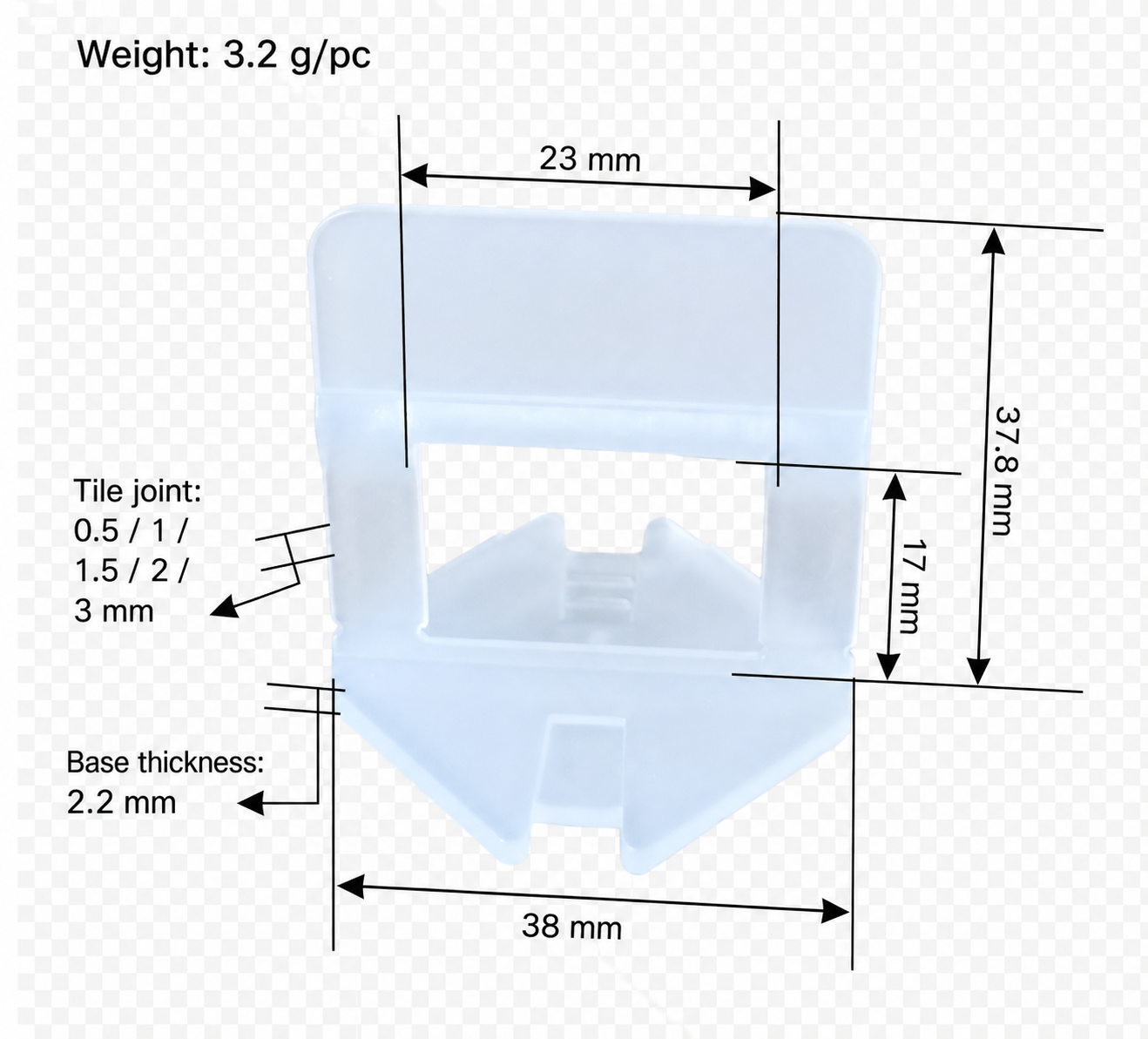

Recommended Tile Clips
Precision leveling clips

Recommended Tile Clips

Joint widths
0.5 / 1 / 1.5 / 2 / 3 mm
Application
Up to 17 mm tile
Specification
2.2 mm base · 3.2 g

Contact us for MOQ, carton data and current quotation.

View details

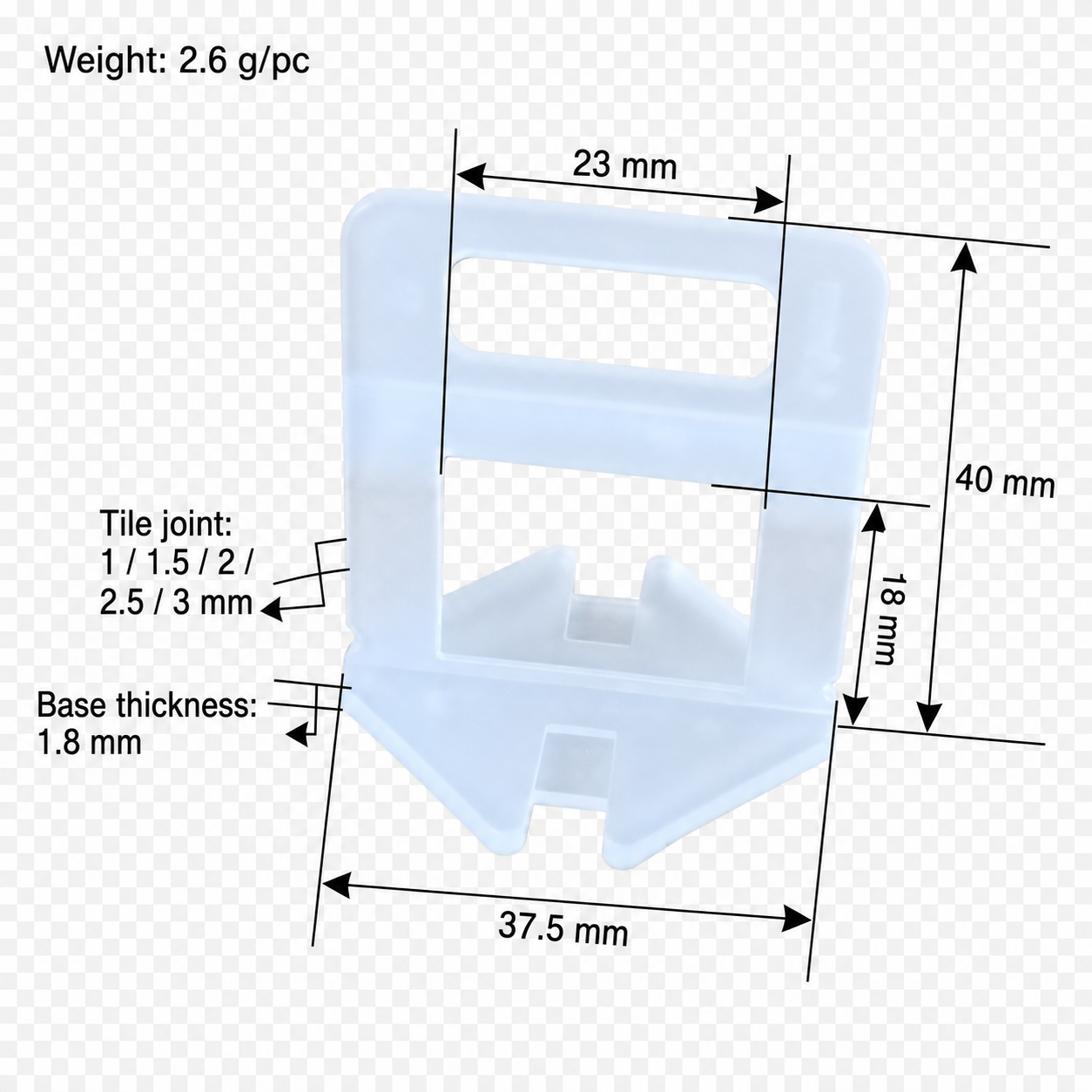

Hollow-Top Clips
Everyday value series

Hollow-Top Clips

Joint widths
1 / 1.5 / 2 / 2.5 / 3 mm
Application
Up to 18 mm tile
Specification
1.8 mm base · 2.6 g

Contact us for MOQ, carton data and current quotation.

View details

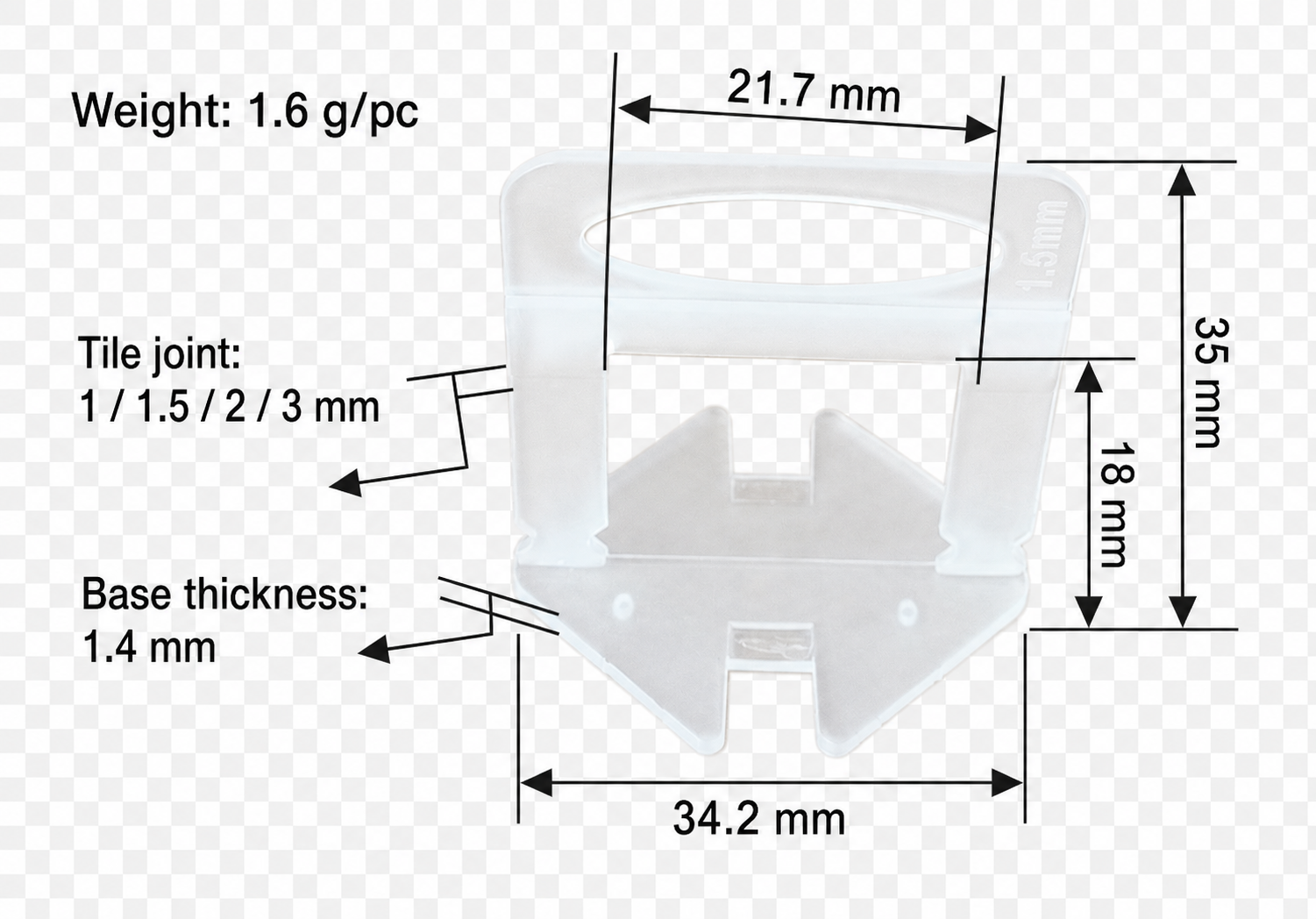

Slim Base Clips
Easy break-off profile

Slim Base Clips

Joint widths
1 / 1.5 / 2 / 3 mm
Application
Up to 18 mm tile
Specification
1.4 mm base · 1.6 g

Contact us for MOQ, carton data and current quotation.

View details

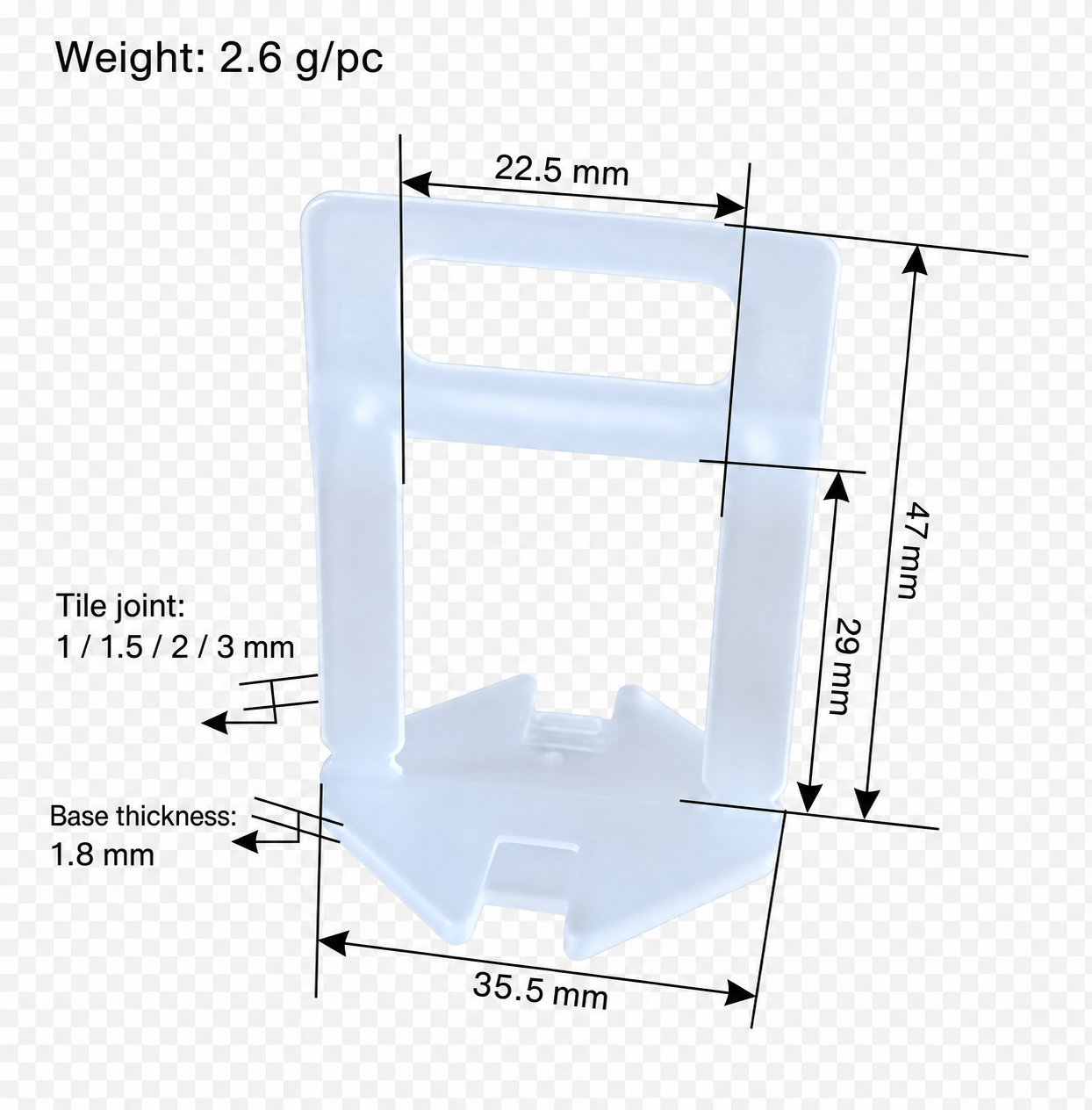

Tall Tile Clips
For thicker applications

Tall Tile Clips

Joint widths
1 / 1.5 / 2 / 3 mm
Application
Up to 29 mm tile
Specification
47 mm overall height

Contact us for MOQ, carton data and current quotation.

View details

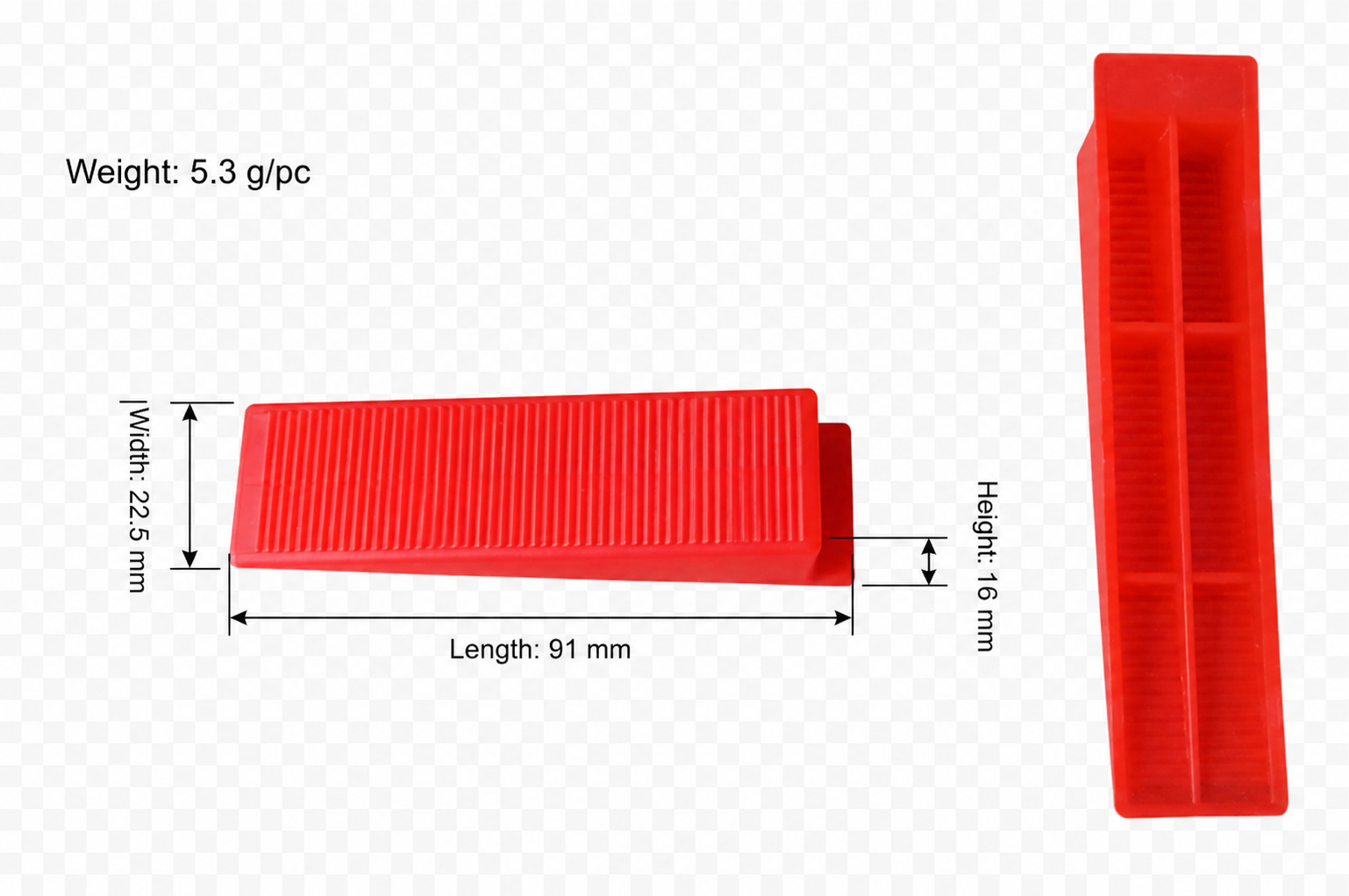

Reusable Wedges
High-grip ribbed wedges

Reusable Wedges

Joint widths
Fits standard clips
Application
91 × 22.5 × 16 mm
Specification
5.3 g · reusable

Contact us for MOQ, carton data and current quotation.

View details

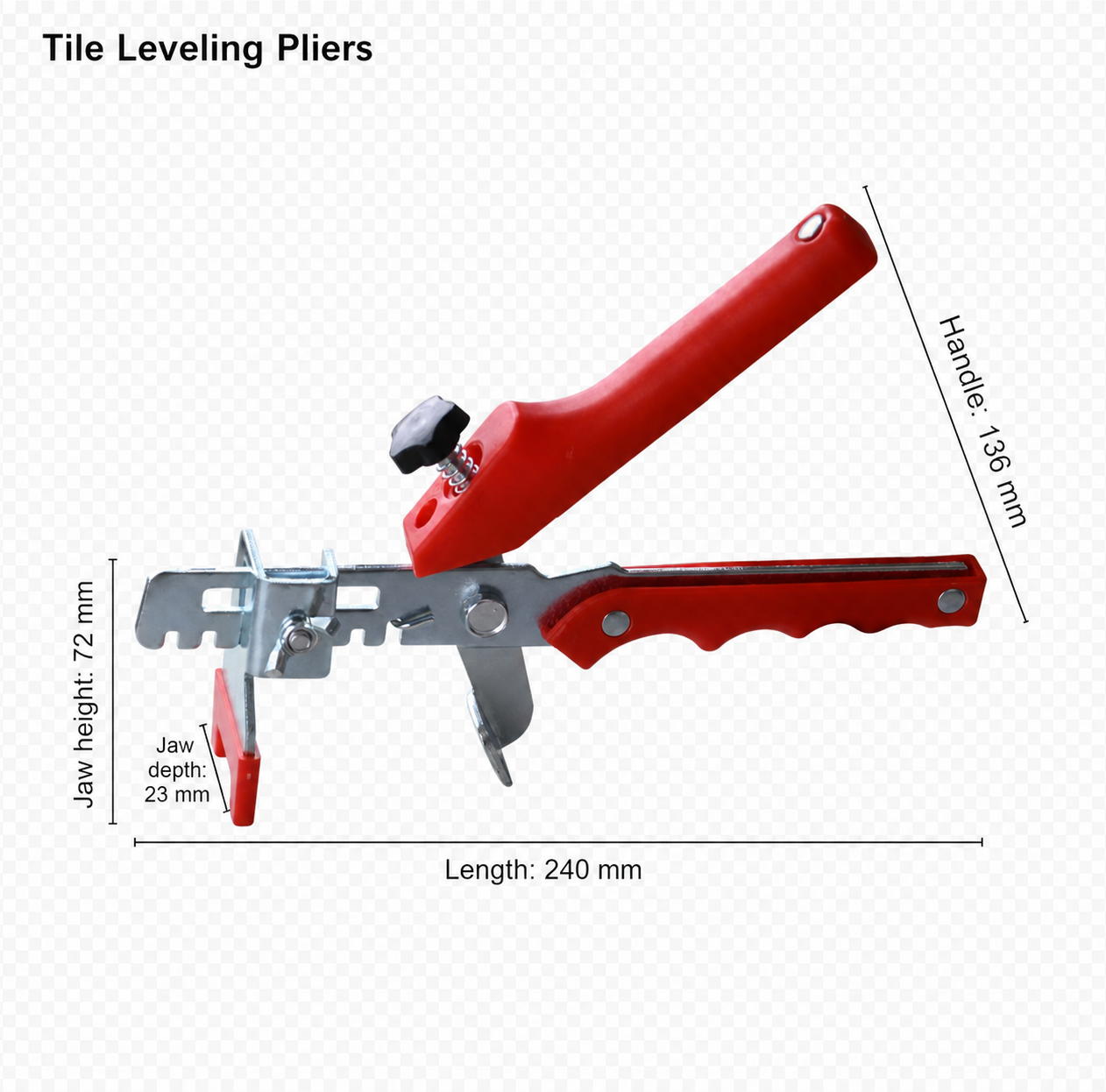

Leveling Pliers
Adjustable installation tool

Leveling Pliers

Joint widths
Floor & wall setup
Application
240 mm body
Specification
Steel mechanism

Contact us for MOQ, carton data and current quotation.

View details

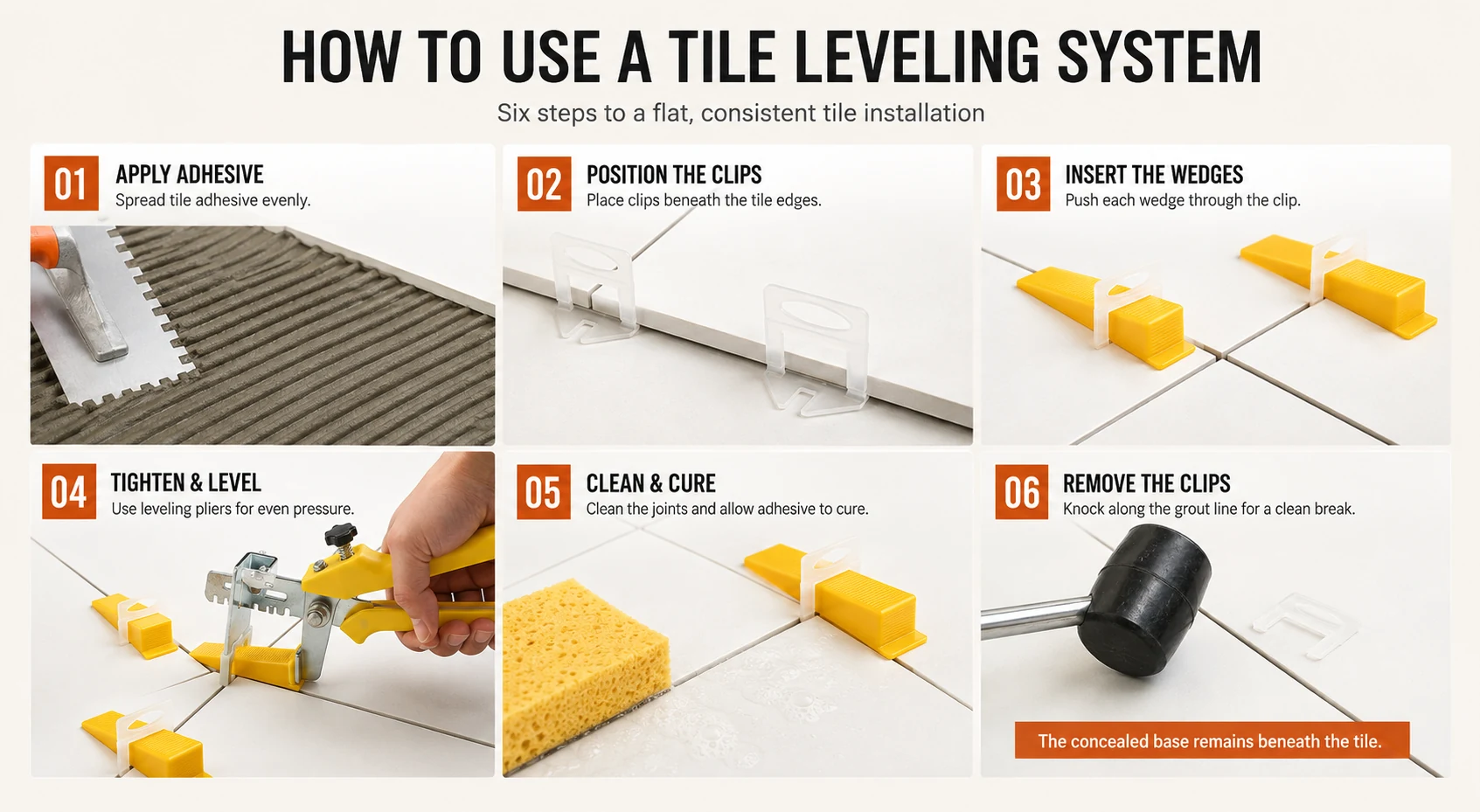

Installation

Four moves along one joint.

The system works mechanically: the clip sits under the tile, the wedge applies pressure, the faces align, and the clip breaks off below the surface.

  1. 01

    Insert

    Slide the clip base under the edges of neighbouring tiles. The spacer sets the joint width.

  2. 02

    Wedge

    Push the wedge through the clip window until it presses both tile faces down.

  3. 03

    Level

    The pressure draws adjacent faces into one plane while the adhesive cures.

  4. 04

    Break

    Once cured, strike or kick the clip head along the joint. It snaps below the tile surface.

Apply adhesive, position the clips, insert and tighten the wedges, then remove the clips after curing.

How to Use a Tile Leveling System — full written guide Installation guide · English

Why bensetimes

What a buyer should be able to check — before the first container.

Statements reflect our published specifications. Ask for a sample to verify on your own tile.

01Joint width
0.5 · 1 · 1.5 · 2 · 3 mmSpacer widths are fixed per clip model, so each SKU maps to one joint.
02Material
PP clips · reusable wedgesRigid polypropylene clip bodies; wedges designed to be used again.
03Dimensional range
Tiles up to 29 mmClip heights cover thin wall tile through thick floor and porcelain formats.
04Batch checks
Material · weight · dimensionsChecked by production batch; specifications sent with every quotation.
05Break-off
Below the tile surfaceBases are shaped to snap along the joint without lifting the tile.
06Export file
Spec sheets · carton dataCarton and container planning shared before you commit to an order.

GLOBAL MARKETS

Built to sell
where you sell.

Product selection, packing and documentation can be adapted to your channel — from contractor supply to DIY retail.

US / CA

North America

Popular inch-equivalent grout gaps, strong retail packs and distributor-friendly case quantities.

0.5 mm · 1 mm · 1.5 mm · 2 mm · 3 mm
EU / ES / UK

Europe & United Kingdom

Metric specifications, multilingual artwork support and compact shelf-ready packaging.

English · Español · Custom artwork
AU / NZ

Australia & New Zealand

Contractor-focused systems for large-format floor and wall tile applications.

Clips · Wedges · Professional pliers
GCC / MENA

Middle East

Volume packing, private labels and product sets for fast-growing construction markets.

Bulk · Retail · Mixed-container planning
TRADE TERMSFOB · CIF · EXW
FULFILMENTSamples · LCL · FCL
PACKAGINGNeutral · OEM · Retail
RESPONSEEnglish export support

INSIDE THE FACTORY

Production & packing

Injection moulding, packing and warehousing under one roof, so specifications, packaging formats and shipment dates stay under our own control.

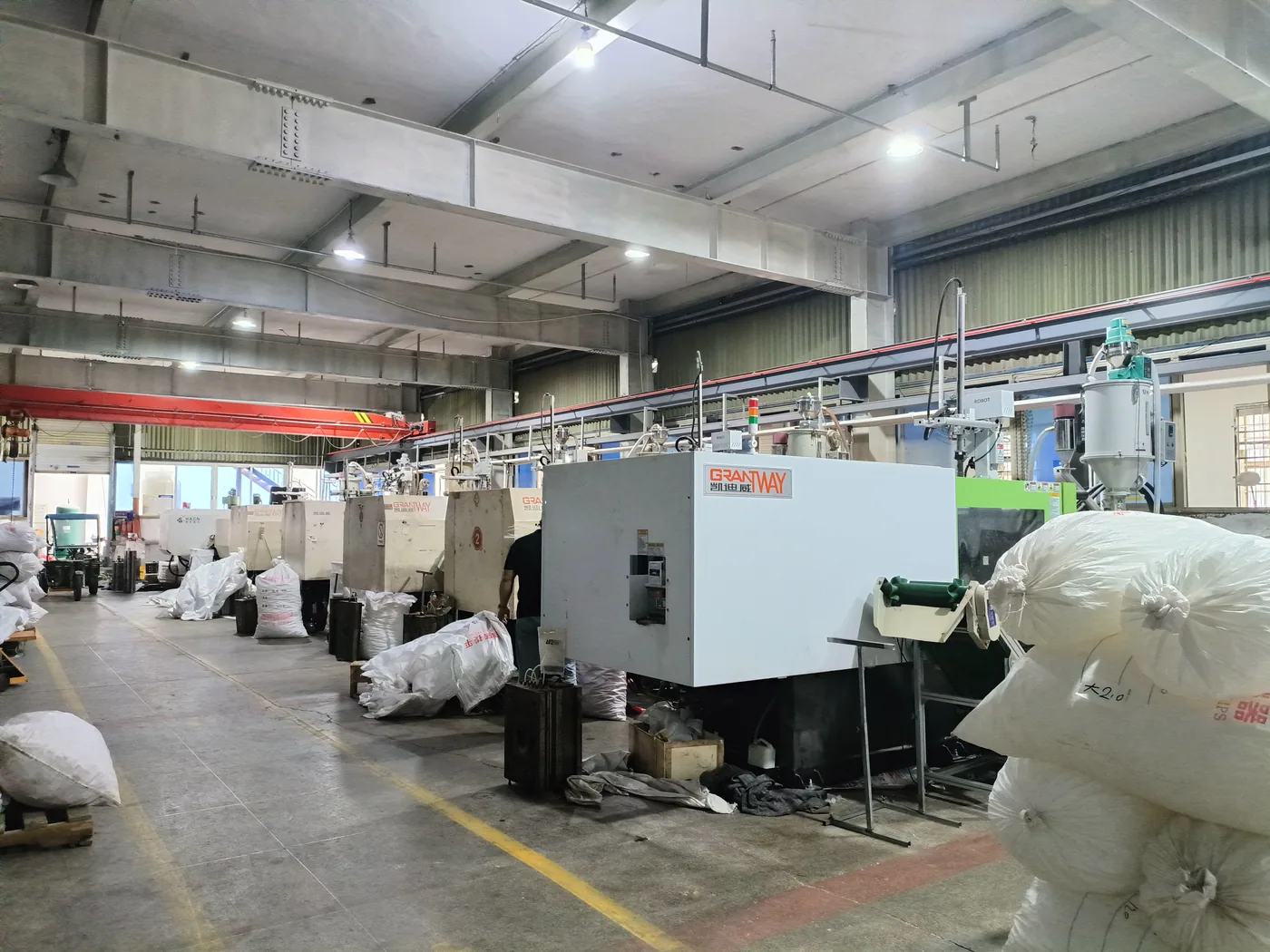

Injection moulding machines producing tile leveling clips in the Bensetimes workshop
Injection moulding workshopMultiple moulding machines running tile leveling clips and wedges in our own workshop.

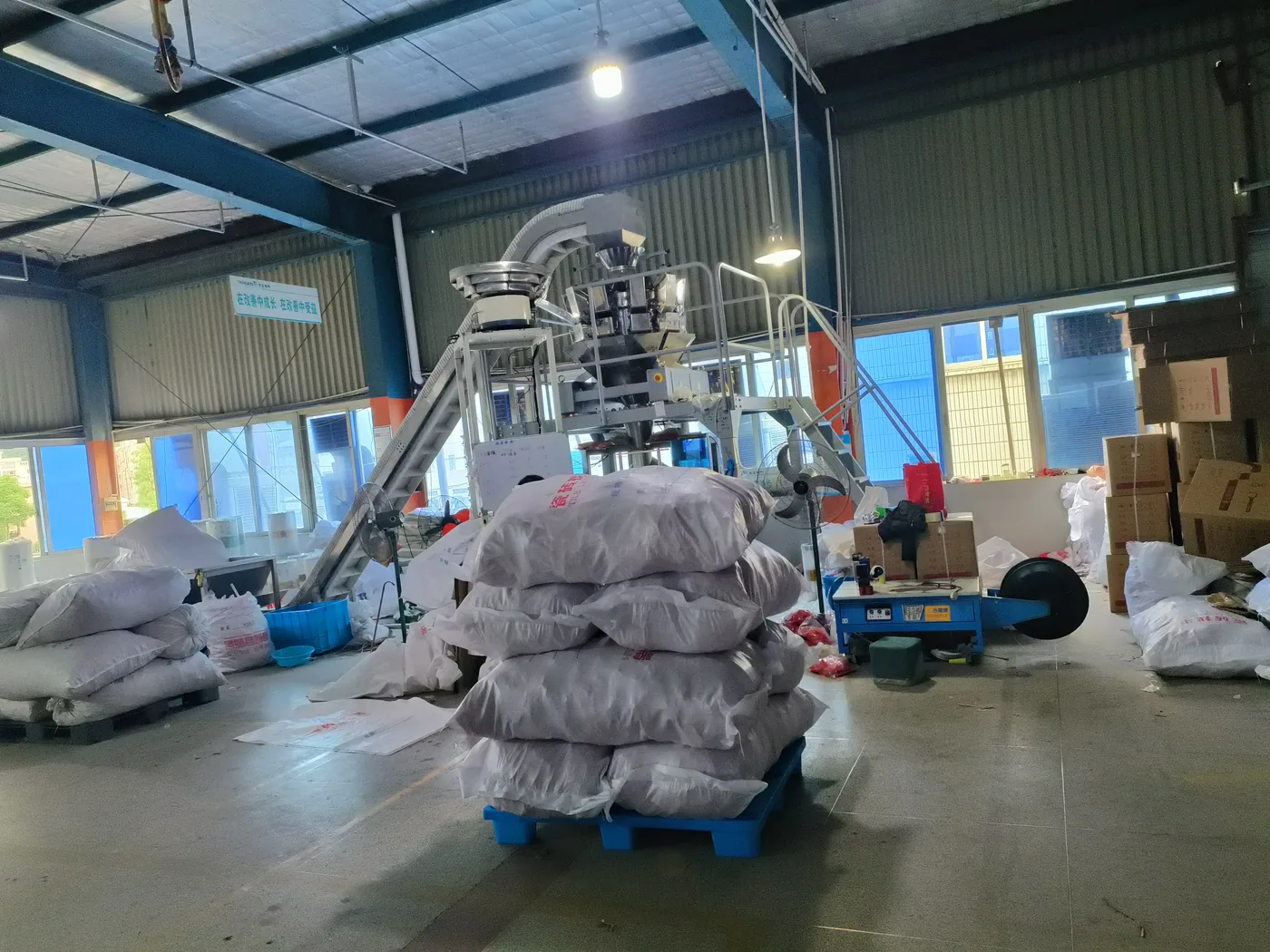

Packing and bagging equipment area in the Bensetimes factory
Packing areaWeighing, bagging and labelling for bulk, neutral and retail-ready packaging.

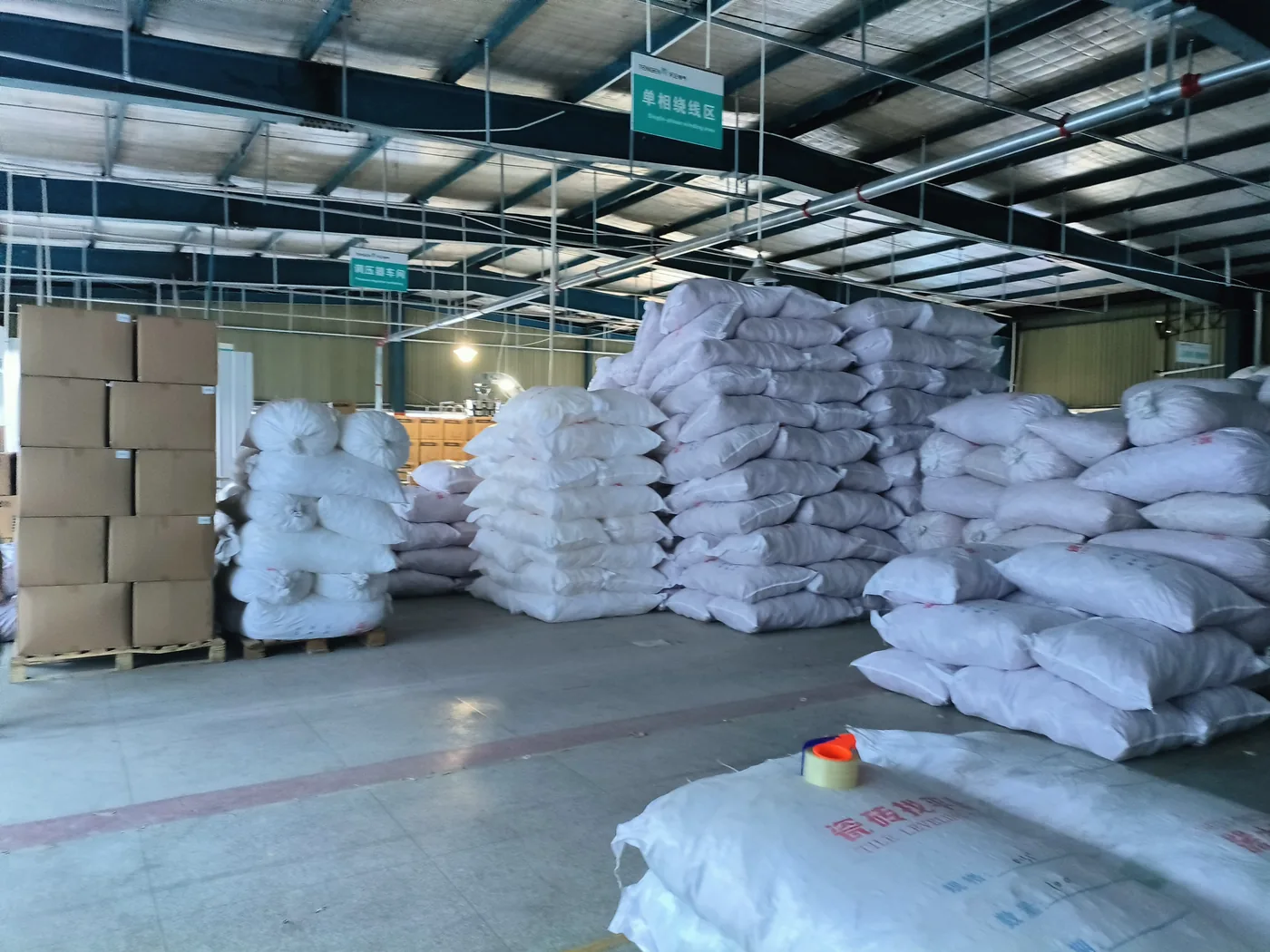

Packed bags and export cartons of tile leveling clips stored in the warehouse
Bag & carton storageFinished bags and export cartons stored ready for LCL and full-container loading.

OEM & wholesale

How an order moves from enquiry to container.

  1. 01

    Product

    Choose clips, wedges, pliers or a mixed system.

  2. 02

    Specification

    Joint width, clip height, colour and weight.

  3. 03

    Branding

    Your logo and English / Spanish artwork.

  4. 04

    Packaging

    Neutral bulk, branded bags or retail cards; barcodes and carton labels.

  5. 05

    Quantity

    Samples before production, then the agreed order volume.

  6. 06

    Shipment

    Carton and container planning for your destination.

Start with step one.Request a Quote

GET AN EXPORT QUOTE

Tell us about
your market.

Share your destination, clip sizes, order quantity and packaging needs. We’ll recommend the right product mix and quote the suitable trade term.
